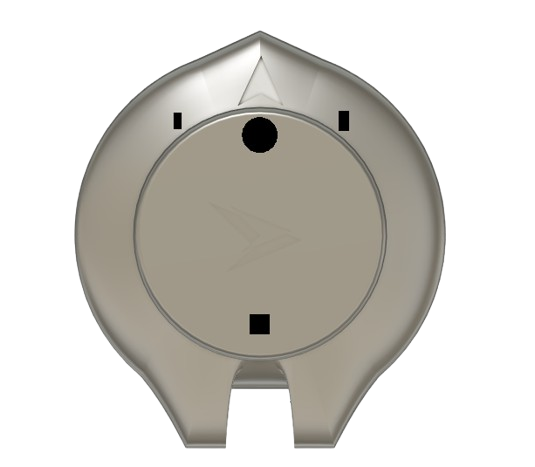

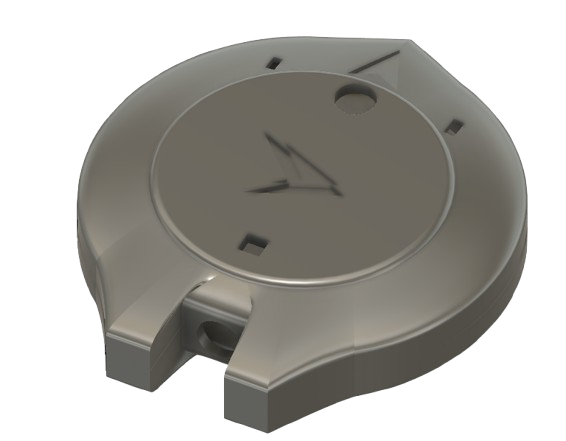

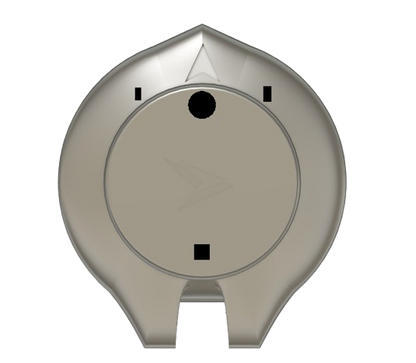

GPS Module for Arduino, Robotics & Navigation Systems

GPS Module for Arduino, Robotics & Navigation Systems

Enquire for Price

GPS Module

  •   Ublox M9N GNSS Receiver
  • Accurate Positioning
  • Fast Navigation Update Rate
  • IST8310 Compass
  • High-gain 25*25*4mm antenna
  • Internal Buzzer, Safety switch
  • RGB LED



GNSS Receiver JTPL GNSS module
Number of Concurrent GNSS
  • GLONASS
  • BeiDou
  • GPS
  • QZSS

Frequency Band
  • GPS L1
  • GLONASS L1
  • Galileo E1
  • BeiDou B1
  • QZSS L1
  • SBAS L1
Output Protocol
  • UBX (U-blox)
  • NMEA
Compass IST8310
Accuracy ~2.0m
Nav. Update Rate Up to 25 Hz
Default Baud Rate 115200
  Input Voltage 4.7 - 5.2V
Antenna 25 x 25 x 4 mm ceramic patch antenna
LNA used Yes
Power consumption Less than 200mA @ 5V
Operating Temperature

-40~80°C
Cable Length 30 cm
Overall Weight 48 gram
PCB Dimension 46.2 mm x 45 mm
GNSS dimension 65.9 mm x 74.2 mm
